Electrical power monitoring system

JPS Concept offers a multifunction onboard electrical power monitoring system displaying…

→ Actual power consumption
→ Service Battery voltages
→ Starter Battery / Supercapacitor voltages
→ Battery charging generator voltage
→ Hydraulic generator output voltage
→ Wind power generator output voltage
→ Solar panel output voltage
→ Low battery voltage, full battery charge, battery compartment water ingress and engine compartment water ingress alarms
→ Detailed data for certain types of Li-Ion battery system

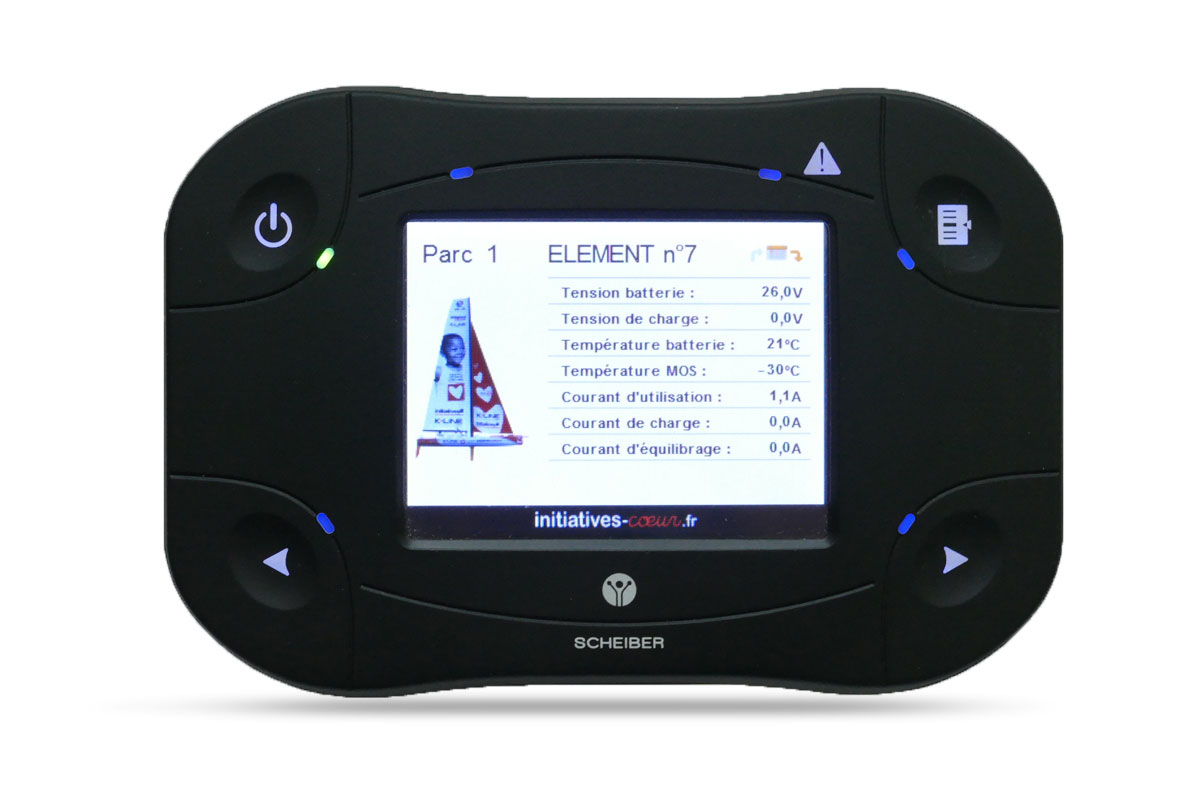

All this data is displayed on a 3.5-inch colour touchscreen. Data are gathered non-intrusively using a dedicated Input/Output module and Hall effect current sensors that do not require power cables to be cut in order to measure the current flowing through them.

Installation is quick and easy, and the system is configured and adjusted directly using the touchscreen.

This system is installed on many racing yachts, including several of the IMOCA 60 Class boats that competed in the most recent Vendée Globe, as well as onSODEBO 4, the single-handed round-the-world record holder, and IDEC , the crewed round-the-world record holder.

Download the IMOCA Block 7 installation diagram as a PDF file

Contact us now to discuss your project
